Tutorial: carbon fiber MINI F55/F56/F57 Rear Extractor Challenge or Pro
- RSI c6
- Oct 24, 2022
- 2 min read
Updated: Sep 12, 2023
Here you will find the assembly tutorial of our carbon fiber extractor , but above all you will find assembly aids even if you have the original exhaust (or exhaust with the side belly)
Products related to this blog post:
FITTING INSTRUCTIONS: The first thing you have to do is to remove the OEM diffuser as you can see here below:
To install it correctly you have to cut off the rim around the OEM bumper.
NOW YOU’RE READY TO FIT IT!
For a correct fitting we suggest to use bi-adhesive 3M tape or specidic glue (in addition to the screws)
If you have a MINI F55
You must create a small connection extension as you can see in the attacched photo.
CONGRATULATIONS!! THE REAR EXTRACTOR IS INSTALLED!
TO MOUNT THE RSI c6 REAR EXTRACTOR, DO I HAVE TO CHANGE THE ORIGINAL EXHAUST?

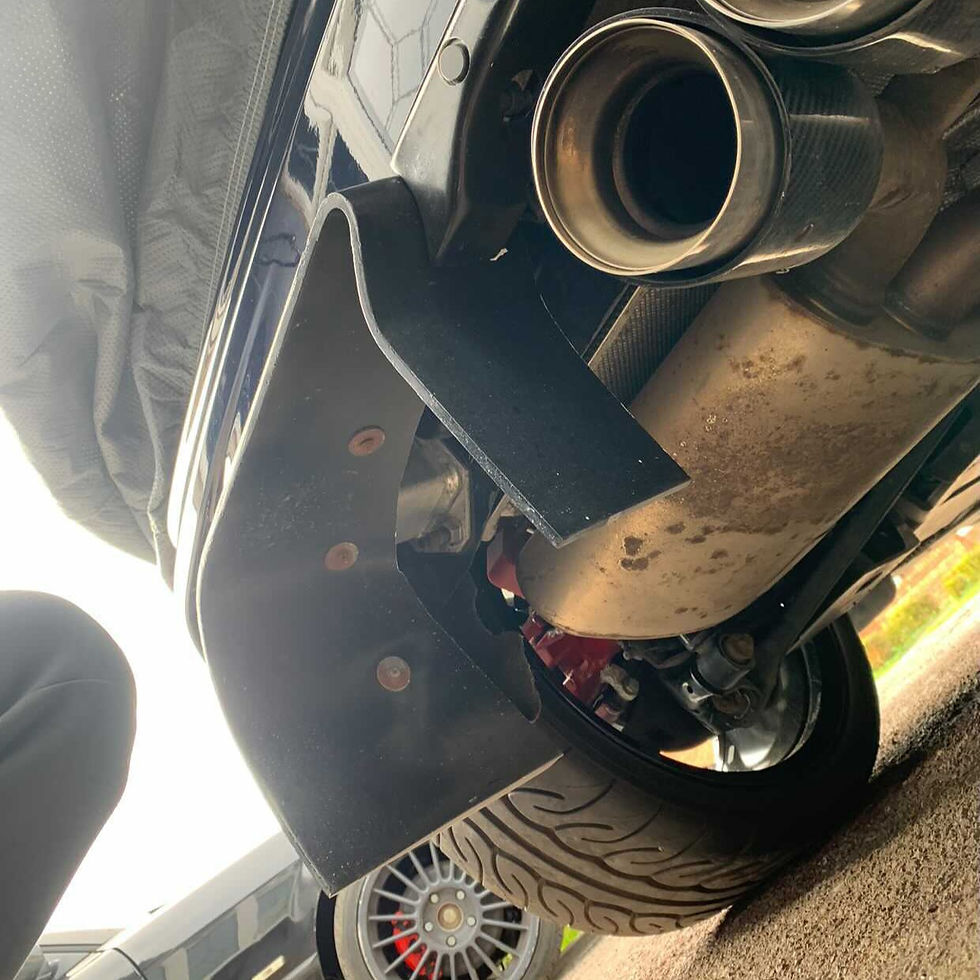

By cutting the extractor as indicated in the image on the side (the dimensions are not indicated as the measure depends on the exhaust installed) you can install our rear extractor even if you have an exhaust with side flank
Here you will find a small video where you will see our rear extractor challenge fiberglass version mounted with this small modification
Here below you can find installation files:
THANK YOU FOR HAVING CHOSEN OUR PRODUCTS!
Race use only
Caution: sport drive can be dangerous and injury people carefully read fitting instructions
We don’t guarantee that this product excludes the owner from danger for healt or life. the owner is well aware of this risk. functionality, warranty, and durability of this product directly depend on proper fitment, use and maintenance of product: owner is aware and responsible for it.
Fitting RSI c6 products on vehicles which have warranty from the car maker may cause in some states warranty loss or non respect of registration parameters or pollutant emissions parameters.
RSI c6 is not responsible for incorrect fitting from non qualified people. if you are not sure of what you are doing, call a professional. RSI c6 is not responsible for improper use and/or incorrect fitment of RSI c6 products.
⚠️ Attention:
RSI c6 is not responsible for damages to the wing or side mounts if instructions of this manual are not carefully followed. we suggest you to have this wing fitted by a professional.
